Sliding Windows

Overview

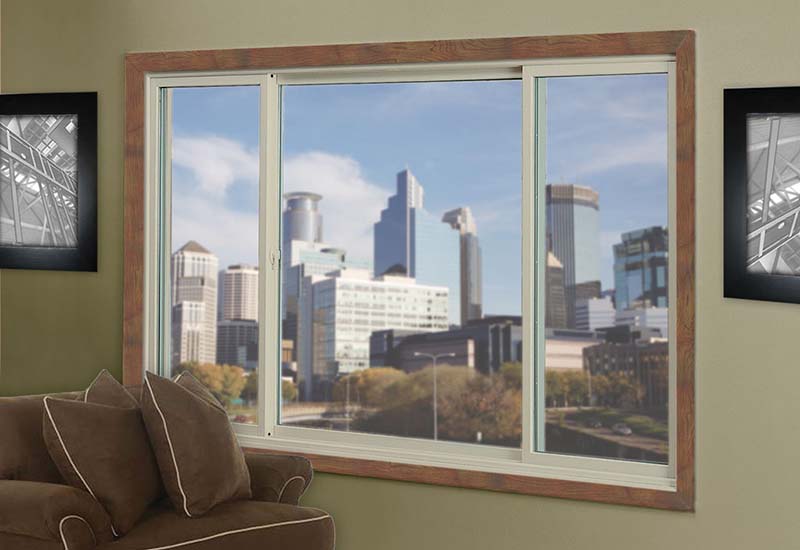

In Sliding Window two or more frames slide horizontally on tracks to the left or the right. The windows are slightly raised above the track for smooth slide and also preventing dust from settling down in the track. Sliding windows are ideal for homes that require space-economy.

Technical Information

Single Glass

Glass: Single Glass
Profile System: ORTA
Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame

1600       right right right right
1400   right right right right right right
1200 right right right right right right right
1000 right right right right right right right
800 right right right right right right right
600 right right right right
  800 1000 1200 1400 1600 1800 2000

Outside Width of Frame

  • Two Point Lock (Handle + Espag.)
  • Push Lock & Two Point Lock

Double Glass

Glass: Double Glass
Profile System: ORTA
Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame

1600       right right right right
1400   right right right right right right
1200 right right right right right right right
1000 right right right right right right right
800 right right right right right right right
600 right right right right
  800 1000 1200 1400 1600 1800 2000

Outside Width of Frame

  • Two Point Lock (Handle + Espag.)
  • Push Lock & Two Point Lock
